Last year around this time, I began writing a multi-part series on how to inspect your own house. By the time I got to part eight, it was already the end of October and the "cooling" season was well over with, so I never posted part nine. Last week's post about cheap AC tune-ups reminded me that I ought to finish this series, so here it is.

Most single family homes in Minnesota have a split system air conditioner. This consists of a big boxy-looking thing with a fan that sits outside the house, which is connected to a box that sits on top of the furnace through two refrigerant lines; one line is small and runs warm, while the other is larger, insulated, and runs cold.

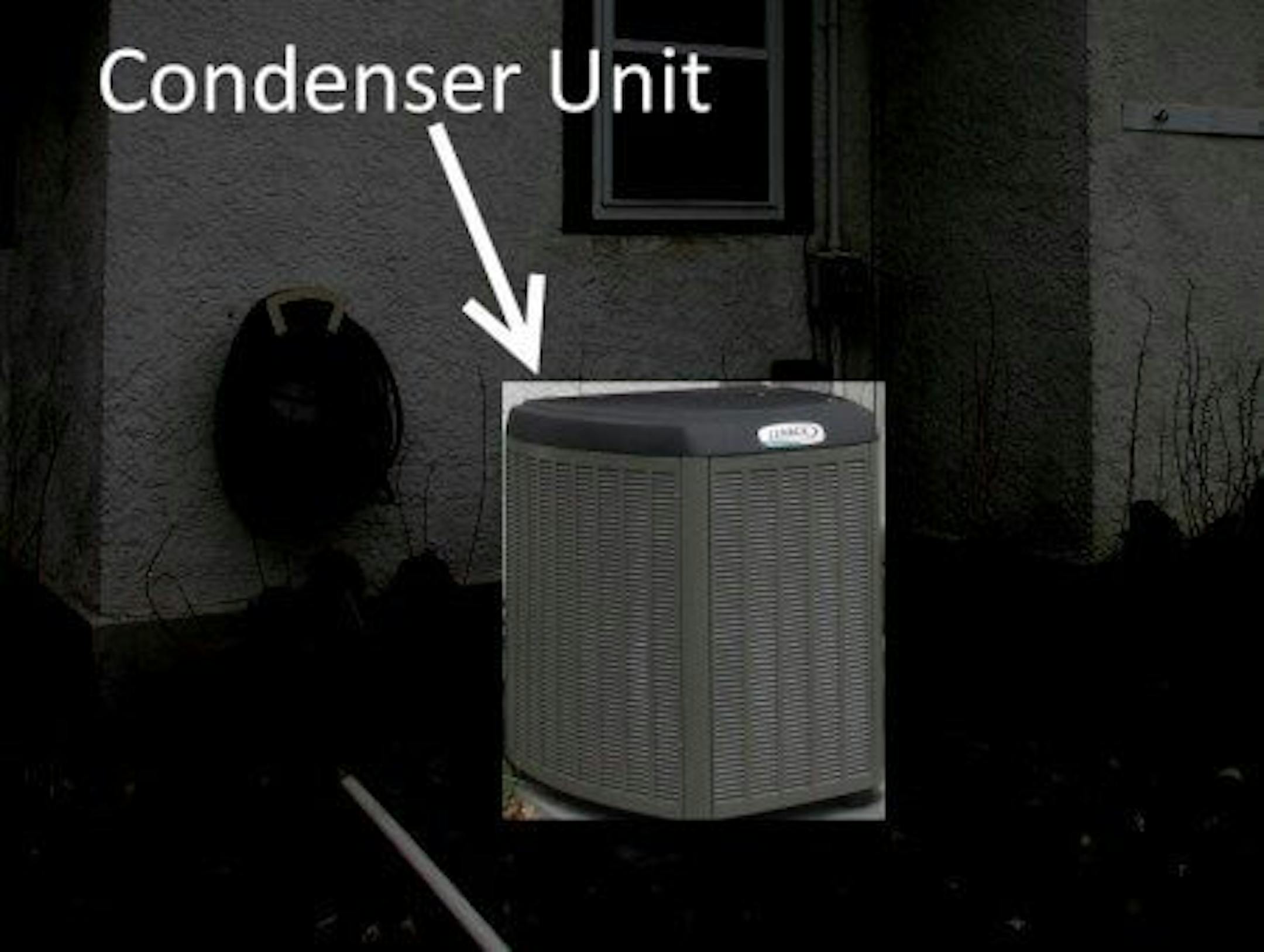

The big thing at the exterior contains the compressor, a fan, and a condensing coil.  It's sometimes referred to as the condenser unit, or the condensing coil. Condenser Unit

Inspect the outside stuff

Start your inspection of the air conditioner by making sure that the exterior unit is clean and unobstructed. It dissipates heat by sucking in air on the sides; if it can't do that, it won't operate efficiently. This means no trellis attached to it, no ivy, no plants, etc.

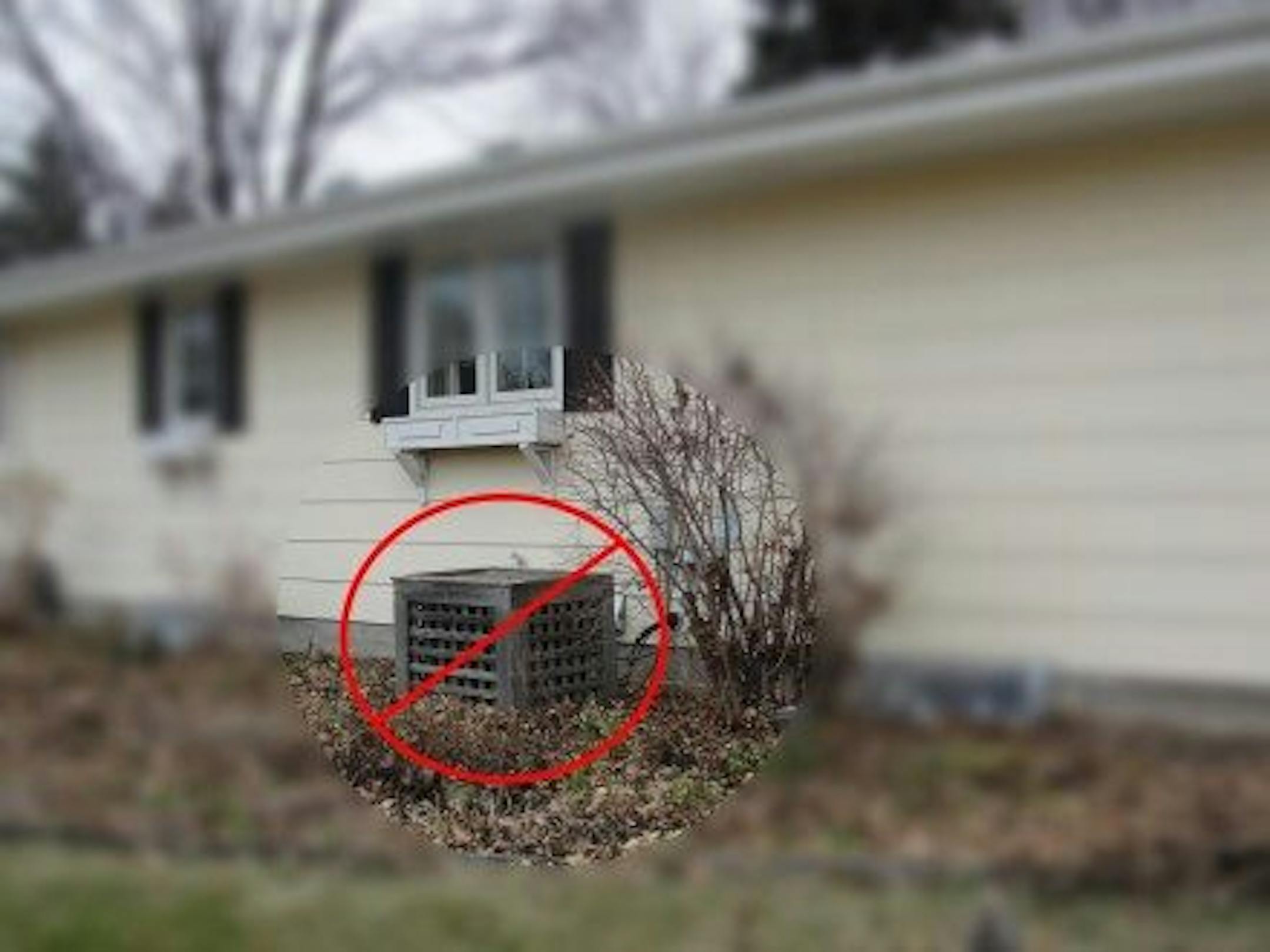

Obstructed AC

Condensing coils also need to be cleaned regularly. When they’re covered with dirt, dust, grass clippings, dryer lint, cottonwood seeds and other outdoor stuff, air flow can be severely hampered. Take the time to inspect all sides of the unit and clean the coils off if necessary. This can usually be done by spraying the unit down with a garden hose.

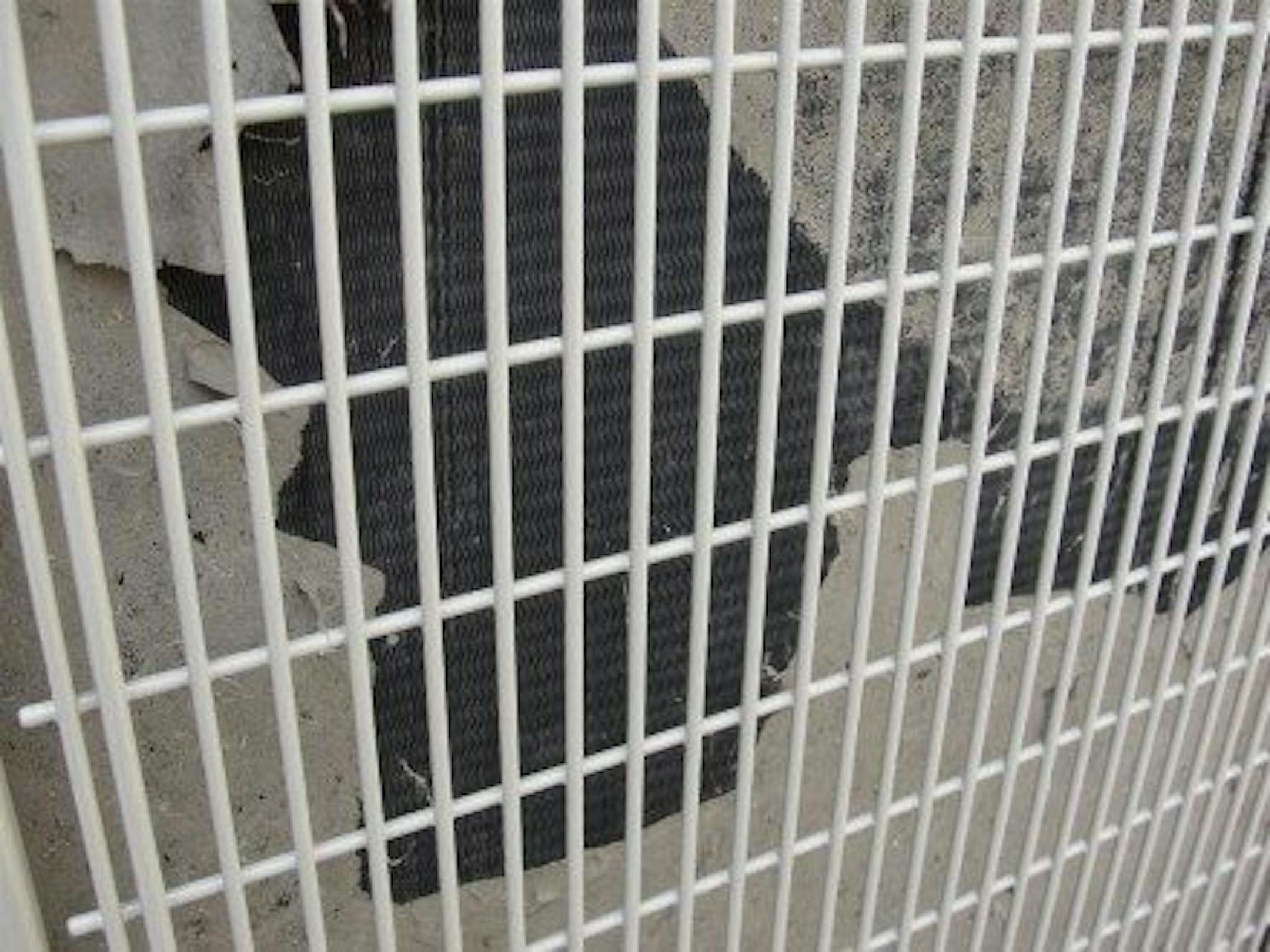

Dirty AC Dirty ac coil close-up

If the unit has protective grills that prevent access to the coils, the grills will need to be removed first. At that point, a little bit of dismantling is involved, and some homeowners might prefer to contact an HVAC tech to do the work.

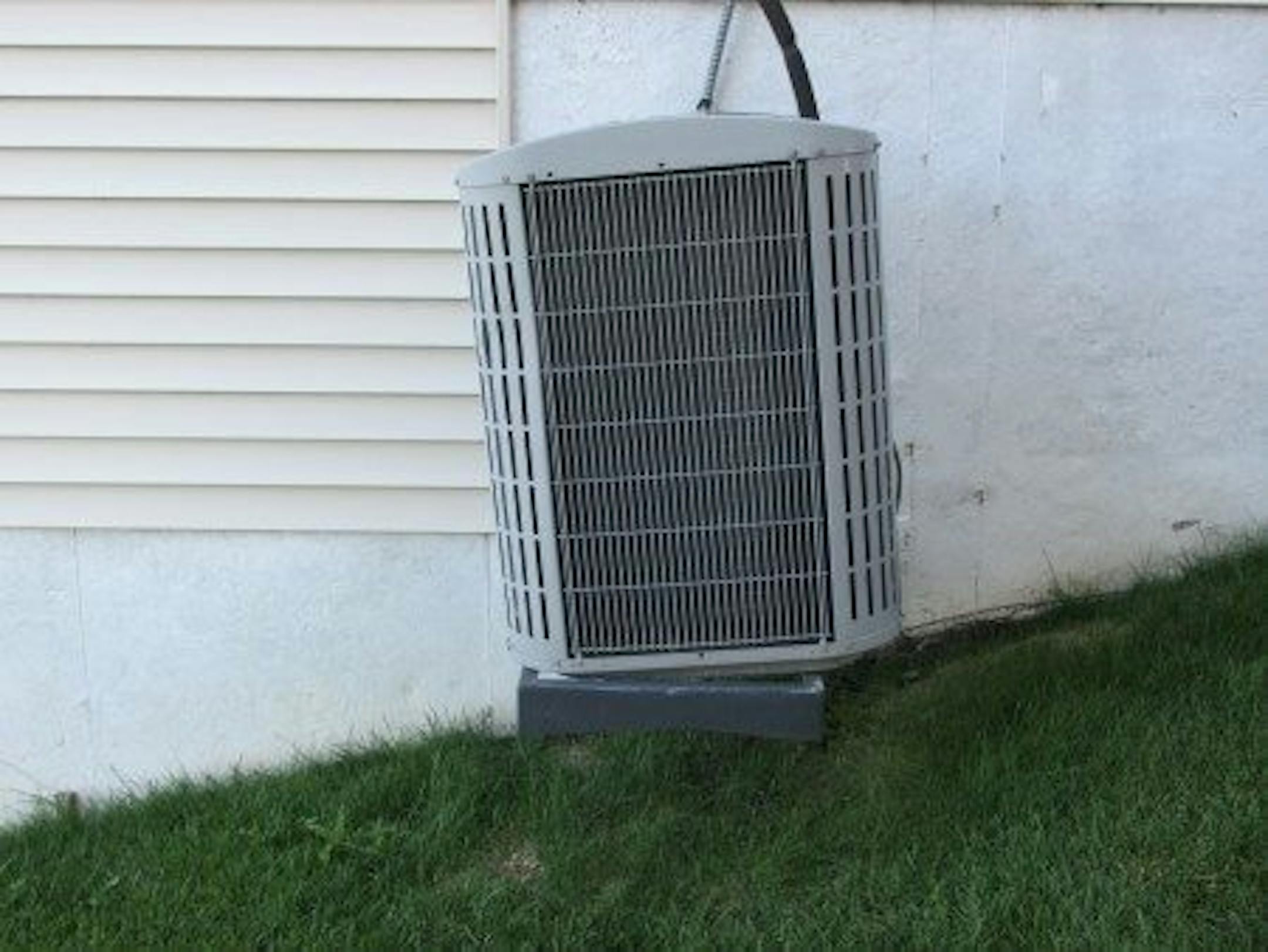

While inspecting the exterior portion of the unit, make sure it's sitting on a level surface and that the refrigerant lines aren't being stressed. The photos below show some nice examples of air conditioners on top of soils that had settled so much that the units were tipping and the refrigerant lines were being stressed.

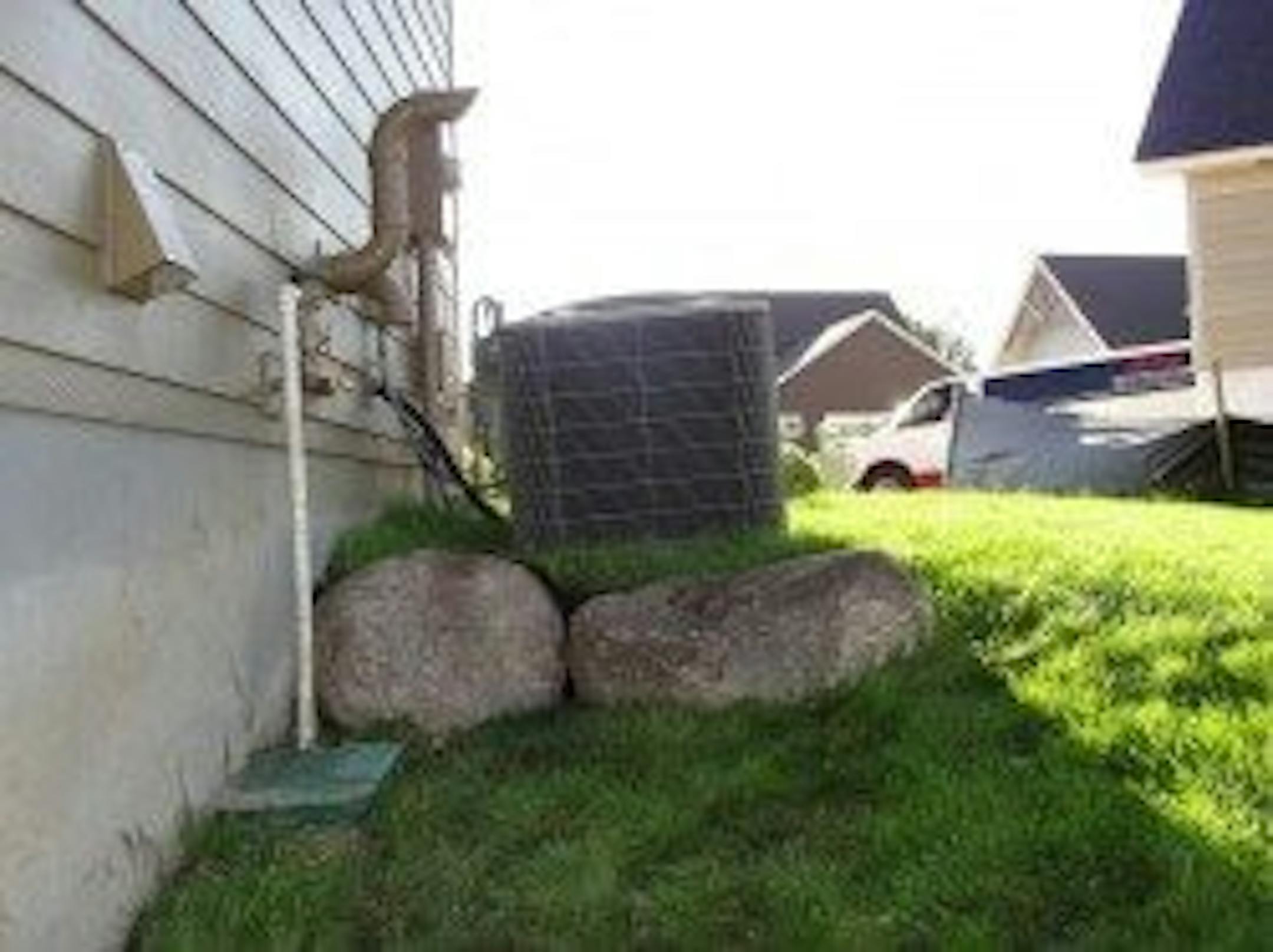

HVAC - tipping air conditioner HVAC - settled grade at AC

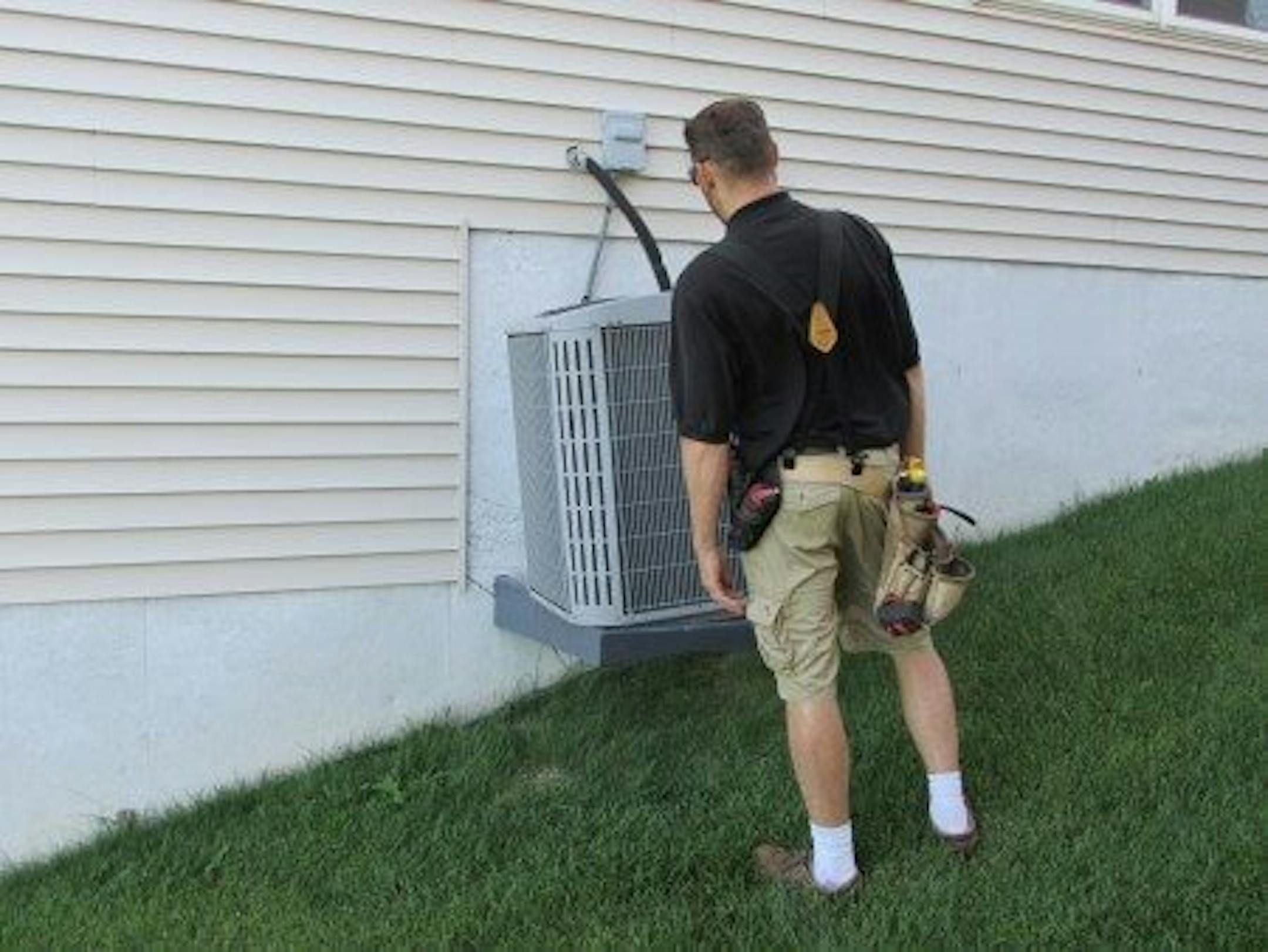

This is typically a simple fix, as the portion at the outside is usually lighter than most people think, and there is rarely (if ever) anything holding it in place. Older installations typically had the condenser installed on a concrete or plastic pad right on the ground, but most units installed on new homes today are mounted to the side of the house. The helps them stay cleaner longer, and it usually prevents tipping of the units. Usually.

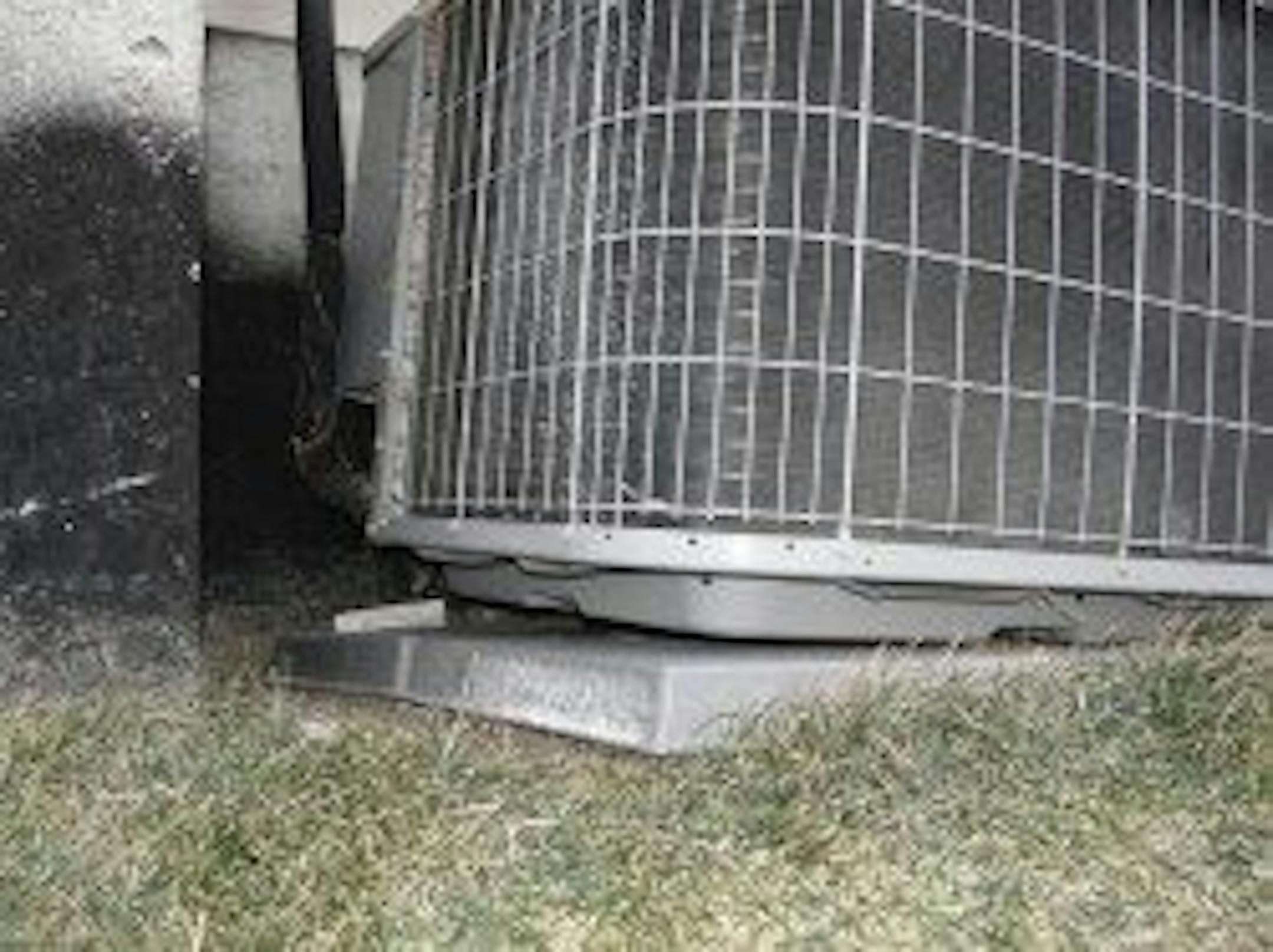

Tipping AC Unit Tipping AC

Turn it on

Next, turn your air conditioner on by switching the thermostat to cool if it's not already there, and setting the thermostat to a temperature about five degrees cooler than the current indoor temperature. This should get the air conditioner to kick on. To be sure the system is running, look outside and make sure the fan at the condenser unit is turning.

If the system doesn't turn on, here are a few things to check which are quite similar to my furnace troubleshooting list, but not identical:

  • Check the service switch for the furnace to make sure it's on. This is usually a switch that looks identical to a light switch. It's usually attached to the side of the furnace, or very close to it. The air conditioner won't run if this is off.
  • Check the circuit breaker or fuse at the main panel.
  • Test or replace the batteries in the thermostat.
  • Make sure the blower fan cover is in place at the furnace.
  • Check the disconnect at the exterior. Every air conditioner should have a disconnect at the exterior so the power can be safely turned off to the unit by a technician, and they shouldn't have to worry about someone in a different part of the home accidentally turning the power back on while the technician is working with exposed electrical components. This was covered in my blog post about locks at circuit breakers.
  • If the disconnect has a pull-out block, make sure the pull-out is installed properly. Most of them can go in upside-down, which will prevent the unit from getting any power. When the pull-out is installed in the "on" position, you'll see the word "on" at the top.

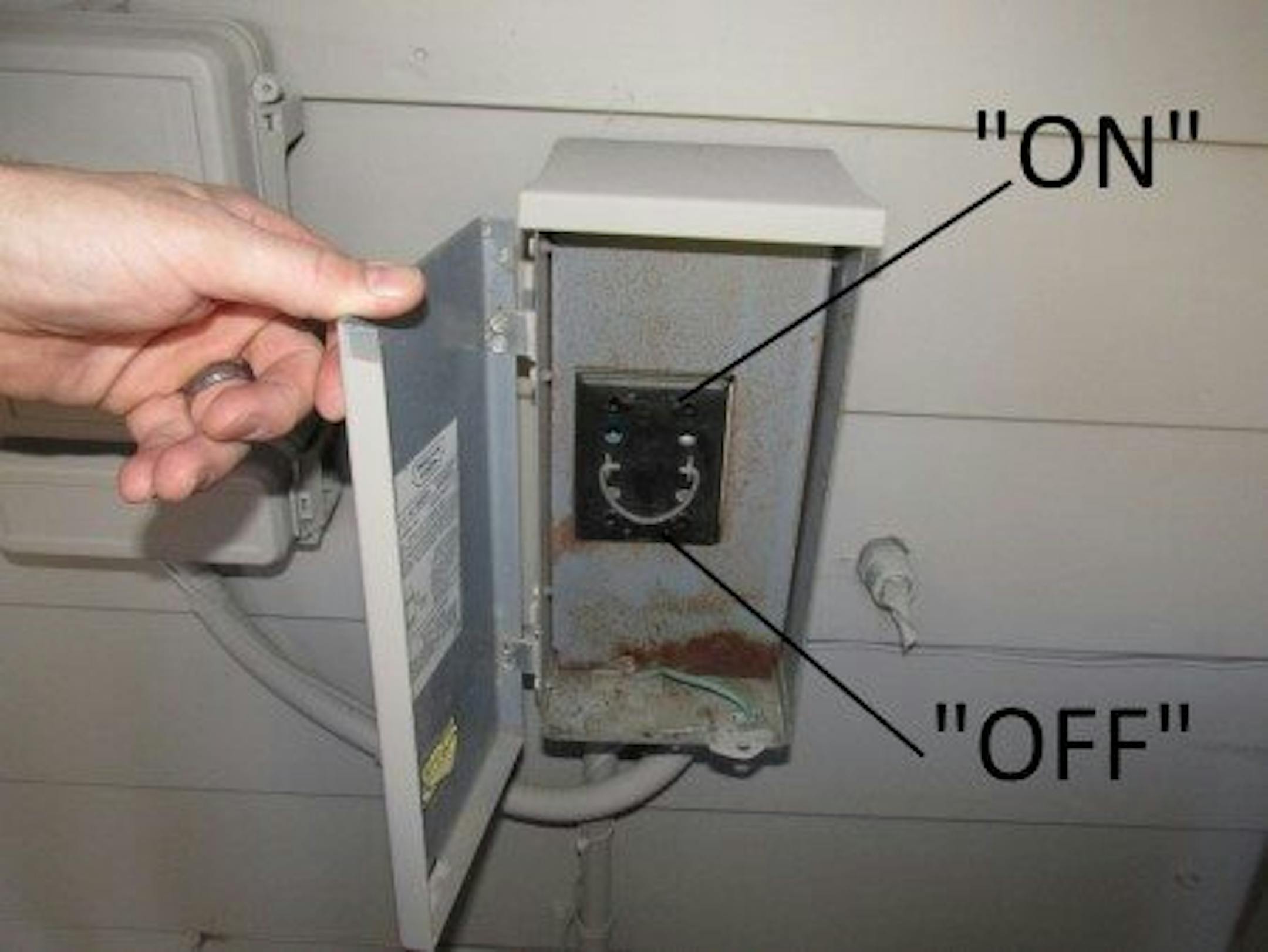

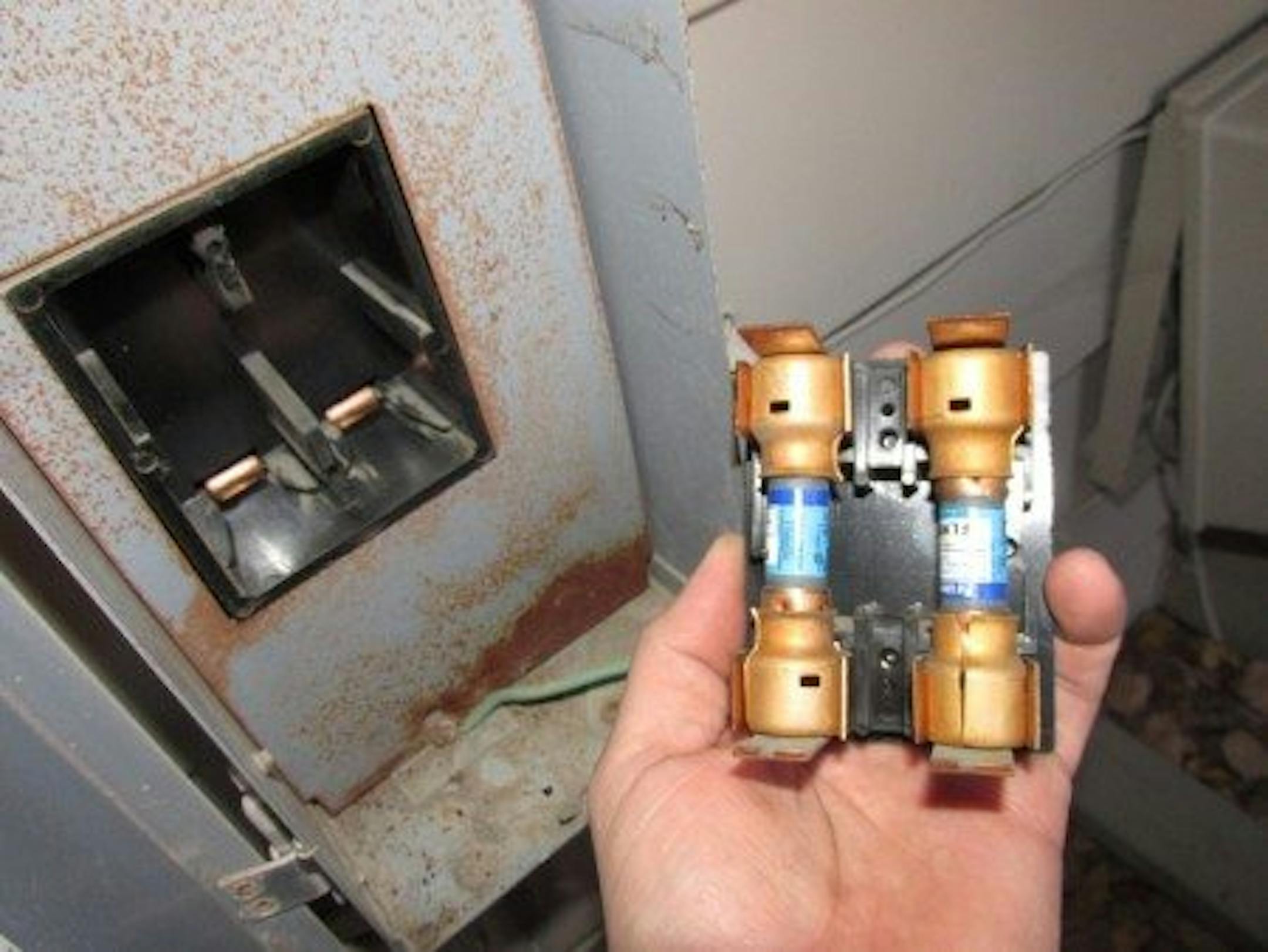

AC Pullout Block on and off Fuses removed

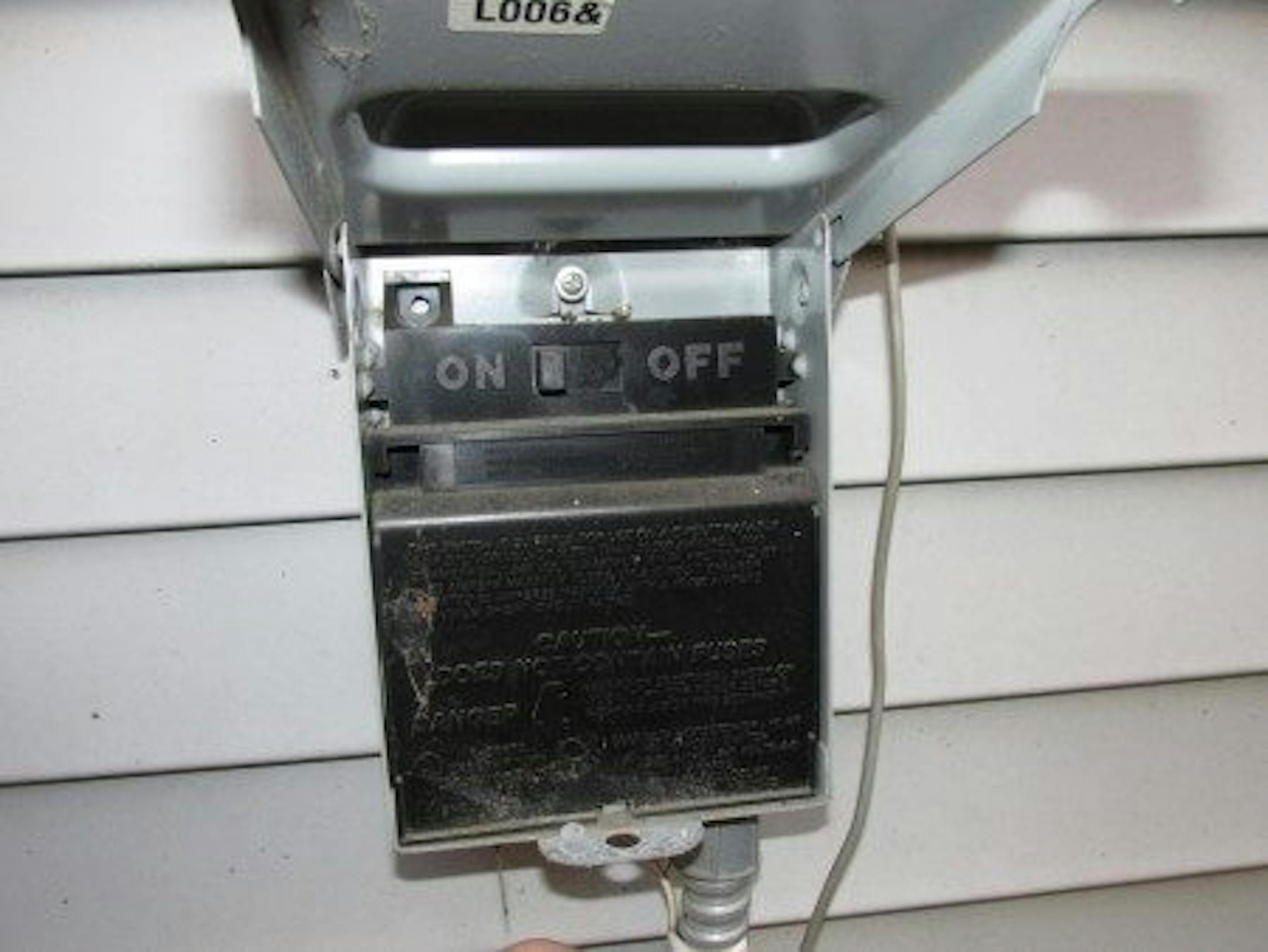

  • If the disconnect has a switch, make sure it's on.

Switched Disconnect

  • If the disconnect has a circuit breaker, make sure it's on and not tripped or turned off.

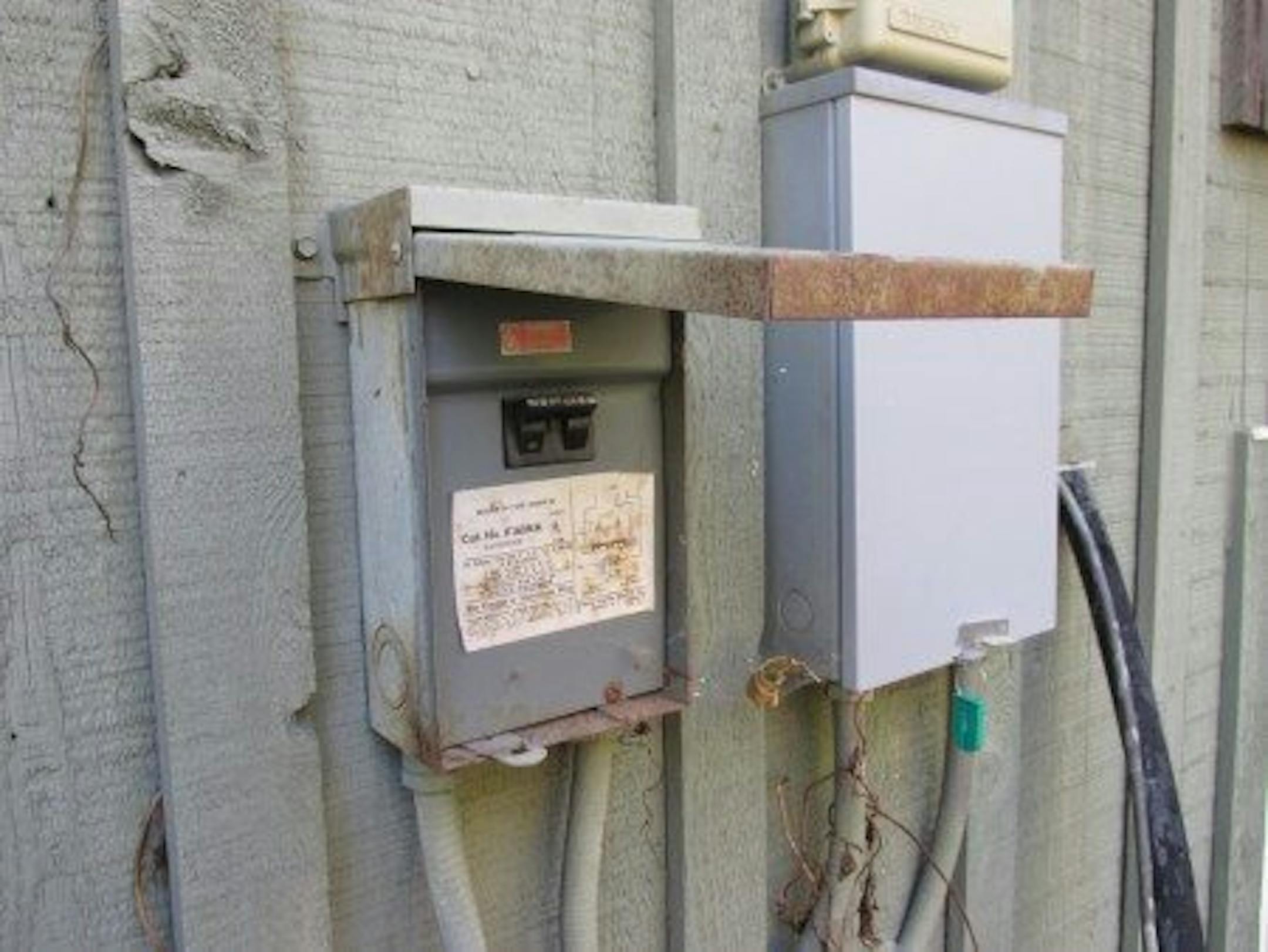

Circuit Breaker AC Disconnect

  • If the disconnect has a pair of fuses, test them to make sure they're still good.  Here's how: http://www.wikihow.com/Test-a-Fuse-With-a-Multimeter .
  • If a load-management device, aka a "Saver's Switch" is installed, check to see if it's activated.  Check out this video clip for info on what these are and how to determine if they're working.

If you go through that whole troubleshooting list and still can't get your air conditioner to kick on, call a technician. Once your air conditioner does turn on, go back outside and listen to it. A properly operating air conditioner while make a steady noise. If it makes a surging noise or any noises that seem 'funny', it could indicate a problem with the unit. That would be a good excuse to call a technician.

The Filter

The filter for your air conditioner is the same as the filter for your furnace. It needs to be changed during the summer and winter. A dirty filter leads to reduced air flow, which reduces efficiency and increases the potential for problems.

The Temperature

After your air conditioner has been running for about 15 minutes, check the temperature of the air coming out to make sure the unit is cooling properly. Air blowing out of registers always feels cool on your skin, so don't trust the way it feels. Use a thermometer to verify the air conditioner is actually cooling. This will be similar to testing the temperature differential on a furnace; check out my blog post on that topic for more info: A DIY Test for Furnaces.

When checking the temperature differential, measurements should be taken as close to the air conditioner as possible. The difference in temperature between the air going in and the air coming out should be somewhere in the neighborhood of 15 - 20 degrees. If it's much higher or much lower than that, it's probably not cooling properly and it’s time to call in a pro.

The Condensate Line

An air conditioner’s two jobs are to remove heat and remove moisture from the air. Condensation occurs at the box that sits on top of the furnace. This box is called the evaporator coil, and it’s usually shaped like the letter “A”, so it’s often called an “A-coil.” There’s a concealed drain pan below this coil which connects to the condensate drain line. That’s where all the condensate, aka water, goes.

If the condensate line gets clogged or obstructed, you’ll end up with a big mess which could cause damage to the furnace, and possibly parts of the building. Keep the condensate line clean to help prevent this. To make sure there aren’t any hidden condensate leaks above the furnace, remove the blower door to your furnace and look inside that compartment for moisture. If you find moisture, you have a condensate leak, which is probably the result of a clogged line.

If you’d like to try clearing a clogged condensate line yourself, or you enjoy squeezing blackheads and you'd like to do the equivalent for your air conditioner, check out this blog post with some great DIY advice: How to clean the AC condensate line. Just ignore the part about most units draining to the outdoors; most units here in Minnesota drain to a floor drain or a condensate pump.

That’s about all I can think of when it comes to homeowner inspections of the air conditioner. In last week’s blog post I gave some advice on how to find a good HVAC contractor at the end, and of course I had a bunch of people ask who I’d recommend. I recommend BWS Heating & Air Conditioning. They recently replaced my neighbor’s furnace, as well as our office manager’s air conditioner, and both of them thought BWS was great. I’ve gotten to know the owner, Bruce, and his son Kevin over the past year or so, and I think they’re great guys who have a great team working for them.
