How to fix double-tapped circuit breakers

Double-tapped circuit breakers are one of the most common electrical defects that home inspectors find.

By Reuben Saltzman

October 8, 2019 at 10:40AM

Double-tapped circuit breakers are one of the most common electrical defects that home inspectors find. Everyone seems to sign off on this defect as a 'big deal', but I'm here to tell you it's not. It's a pretty minor issue, and it's usually a simple and straightforward fix. Today I'll explain what double-tapping is, when it's a problem, why it's a problem, and how to correct it. If you prefer video format, here's that: https://youtu.be/aVbY5VSQLi0

I didn't consult with an attorney before writing this article, so I better add a disclaimer before giving any electrical how-to information: Don't do electrical work if you're not qualified. You could get shocked, electrocuted, or start a fire. This is only an overview.

Definition: When I say 'double-tap', I'm actually not using the correct terminology; this is just what a lot of home inspectors say when two conductors are connected under one screw or terminal inside a panelboard. There is no official term for this, so double-tap works for me. Sometimes this refers to two conductors at one circuit breaker, other times it refers to two conductors connected under one screw at the neutral bar. Today I'll discuss two conductors connected to a single circuit breaker.

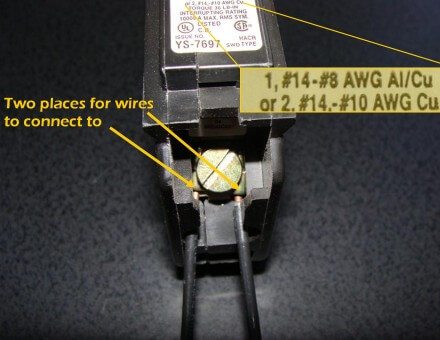

When it's NOT a defect: Double tapped wiring is ok if the circuit breaker is designed for two conductors. If a circuit breaker is designed for two conductors, it will say so right on the circuit breaker, and the terminal of the circuit breaker will be designed to hold two conductors in place. The circuit breaker shown below is an older Square D designed to accept two conductors. I highlighted and enlarged the portion of the label that says two conductors can be attached. This is acceptable. The only manufacturers that make circuit breakers that are designed to hold two conductors are Square D and Cutler-Hammer, but not all of their circuit breakers can be double-tapped.

(The Minnesota Star Tribune)

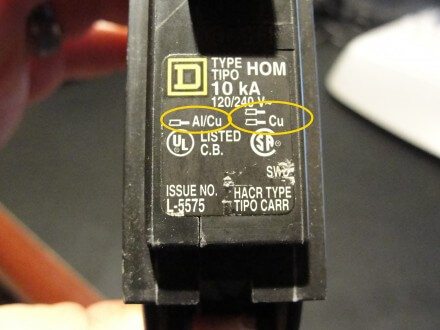

Here's a newer type of Square D circuit breaker - instead of putting a bunch of text on the front of the circuit breaker, they just have a little picture on the front of the breaker.

(The Minnesota Star Tribune)

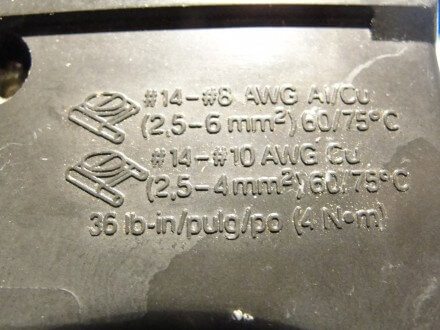

They now put the text on the side of the breaker.

(The Minnesota Star Tribune)

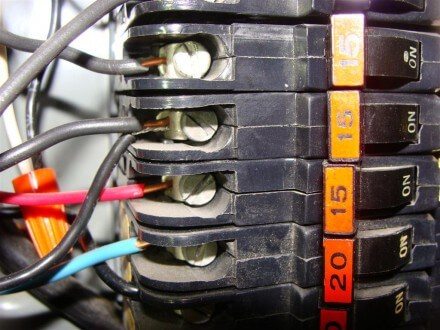

When it IS a defect: This is a defect when the circuit breaker isn't designed for two conductors, and most aren't. It doesn't matter if it's just a simple doorbell transformer wire that's added onto the circuit breaker. The issue isn't about the load imposed on the circuit, it's about the physical connection.

(The Minnesota Star Tribune)

Why it's a problem: If the circuit breaker isn't designed to hold two conductors, the conductors could come loose at some point in the future, even if they feel very tight today. Loose conductors can lead to overheating, arcing, and possibly a fire.

How to fix: The fixes I'm going to list below are a few common ways of dealing with double-tapped circuit breakers.

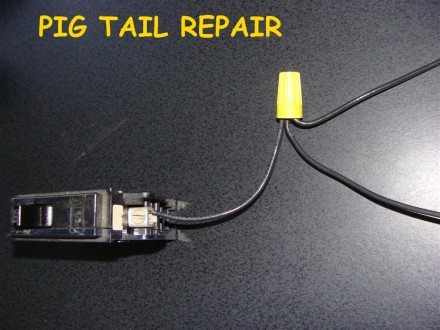

Pigtail: This is the most common repair, and it's ridiculously simple. The offending conductors simply get disconnected from the circuit breaker, connected to a single conductor with a wire nut, and that single conductor gets connected to the circuit breaker. Now, I know what you're thinking: "What's so tough about that?" The answer is nothing. This is a quick and easy fix.

(The Minnesota Star Tribune)

Different Circuit Breaker Another simple repair would be to replace the circuit breaker with a type that is designed for two conductors, as long as the panel is designed for it. This would be more involved than the pigtail repair, and I don't know why anyone would want to do this, but it would certainly be acceptable.

If there are more problems going on besides just a double-tap, the repair might get more involved. For instance, if a homeowner finished off a basement and added a circuit for the basement bedroom onto the circuit breaker for the bathroom receptacles, simply adding a pigtail for the wires wouldn't be a proper repair, in part because the bathroom receptacles can't be on a shared circuit. In this case, the conductors would need to be split off on to two separate circuit breakers. There are a few ways to do this.

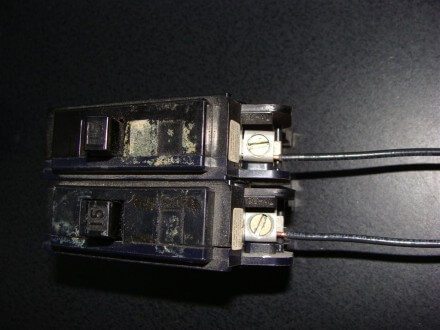

Add A Circuit Breaker If there is room in the panel, another circuit breaker can be added, and the conductors split off to the two different circuit breakers.

(The Minnesota Star Tribune)

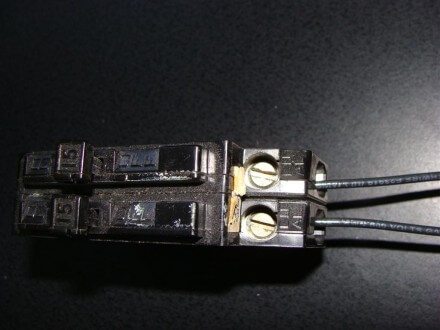

Install A Tandem Breaker If the panelboard is designed to use tandem breakers and a tandem breaker can be properly used in lieu of the offending circuit breaker, this is another acceptable fix. This is basically a way to install two circuit breakers in one space.

(The Minnesota Star Tribune)

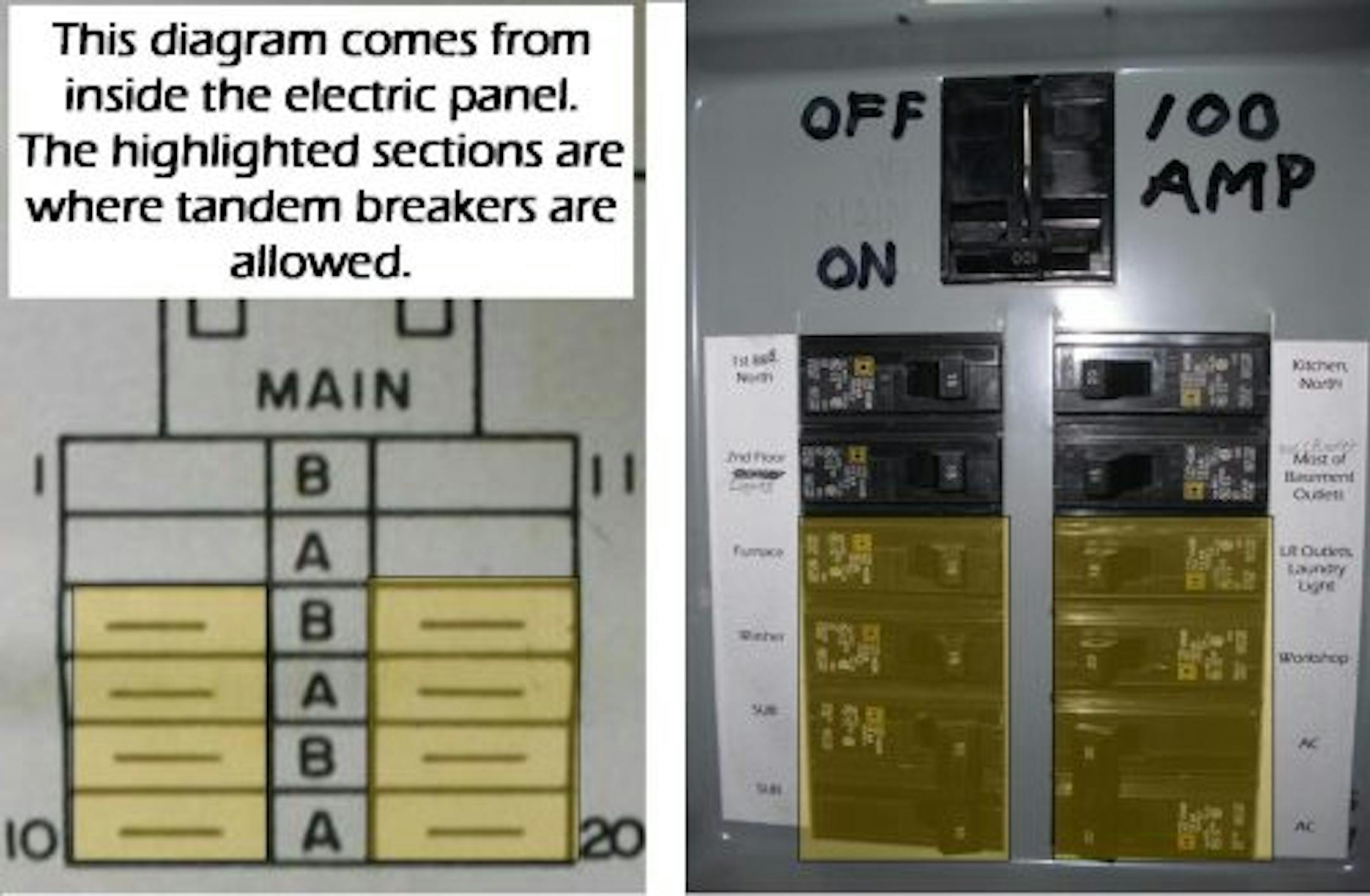

If a panel will accept tandem breakers, it will say so inside the panel, and the specific locations where tandem breakers can be used will be identified. A panel may allow all tandem breakers, no tandem breakers, or some tandem breakers. The photo below shows a panel that allows some. As you can see, eight more circuits could be added to this panel, as there are currently no tandem breakers being used. This would take some shuffling around, but it wouldn't be a big deal to do.

(The Minnesota Star Tribune)

For more info on tandem breakers, check out this post: Tandem Circuit Breakers

What about AFCI protection? Arc-Fault Circuit Interrupter (AFCI) protection is needed throughout homes today to help reduce the risk of fires. When a circuit breaker is replaced, is there any requirement for AFCI protection to be added at the same time? For the most part, no. But that's ultimately the decision of the authority having jurisdiction.

When none of the above solutions are possible, the repair might involve replacement of the panel with a larger one, or the addition of a subpanel. This would be much more expensive, but still, not a crippling cost for most people.

(The Minnesota Star Tribune)
